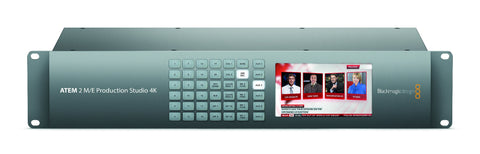

The ATEM 2 M/E Production Studio 4K from Blackmagic Design is a live event multi camera production switcher with 20 video inputs built into a 2RU chassis. Supporting NTSC/PAL/HD and Ultra HD 4K (3840x2160) video formats, the switcher connects to a wide range of cameras and sources, delivering a single program stream in SD, HD, or Ultra HD video. All this is done live and in real time with no rendering required. The switcher features a reference video input for synchronizing the switcher to other equipment using tri-level or blackburst sync. Each input also features its own frame synchronizer, which allows you to use cameras that do not feature Genlock as well as input video from computer sources.
The switcher provides 20 6G-SDI video inputs and one 4K HDMI input, which shares a channel with one of the 6G-SDI inputs. Outputs include three 6G-SDI Program outputs, one HDMI Program output, six 6G-SDI auxiliary outputs. All inputs and outputs are SD/HD/UHD switchable, with the exception of dedicated down-converted HD Program output for monitoring UHD footage on an SDI-equipped HD monitor. Two independent multi-view outputs are available, in both SDI and HDMI, so you can monitor up to 16 cameras across two screens.
A built-in 22-input audio mixer handles the embedded HDMI and SDI audio from the 20 active video inputs as well as audio from the balanced or unbalanced analog audio inputs to provide you flexibility and creative audio options. Audio output is embedded in the SDI and HDMI stream, as well as available via balanced audio outputs. The control panels connect via the Ethernet port and provide control all the features of the switcher. Illuminated front panel buttons on the switcher allow you to locally select the aux output, while a 2-inch LCD screen built into the front of the unit allows you to see the aux output for instant confirmation of the correct output.
Either a Mac or PC running the included ATEM software controls the switcher's operation and settings. For those who like the feel of a physical control panel, the optional ATEM 1 M/E and 2 M/E Broadcast Panels can be used.
Video
- The ATEM 2 M/E Production Studio 4K switcher supports 4K Ultra HD video (3840 x 2160), which is four times the resolution of Full HD. The video format is set by the user and must be the same across each input, as the switcher cannot scale different input formats to match the project format.
- The switcher features 20 single link 6G-SDI and one HDMI 4K input, which allows you to connect SD/HD/Ultra HD and computer-based signals to the switcher. However, the HDMI input is shared with one of the SDI inputs, so you can only have a maximum of 20 inputs.
- The switcher takes reference video in for sync timing, either blackburst or tri-level sync, so that it can interface with other post production equipment.
- Each input incorporates its own frame synchronizer, which enables you to use cameras that do not have genlock capability or to input computer sources such as Keynote or PowerPoint Presentations.
Audio
- The switcher includes a built-in audio mixer for mixing and balancing embedded audio from all 20 video inputs as well as the two audio inputs, each with two channel support. This lets you manually mix sources or you can set mixer inputs to "audio follow video" so your audio crossfades as you switch between sources.
Video Outputs
- The switcher features two program outputs for the final video, delivering SD/HD/Ultra HD via three 6G-SDI port and one HDMI 4K connector.
- The switcher features six SDI auxiliary outputs capable of delivering the program out feed with or without the downstream keyer effects in SD, HD and Ultra HD. Control of the Aux output is by front mounted panel buttons, and built-in LCD screen for immediate confirmation of the Aux output.
- Two independent multi-view outputs available via an SDI or HDMI connectors so you can see up to 16 cameras across two screens.
Multi View Monitoring
- The Multi view output features four selectable screen layouts that show eight inputs or six inputs and the two internal media players, plus Preview and Program outputs for each video Bank, on each screen at the same time.
Effects
- The ATEM 1 M/E Production Studio 4K switcher features four built-in transitions.
-
- Cut: ATEM instantly changes from current program source to the preview source precisely at the moment you hit the button. Cuts can be performed by directly selecting sources on the program bus or more commonly by pressing the cut button to transition to the next source lined up on the preview bus.
- Mix: Dissolves from one image to another. You can program a pre-set transition rate, or use the included software control panel or available hardware panels to manually transition from one shot to another.
- Dip: Is similar to the mix/dissolve, except it first it transitions to a color/graphic or video source and then to the next shot.
- Wipe patterns: With 18 built-in wipe patterns, you can create over 100 differnet transitions, and the patterns can be inverted or softened and you can customize the color of the border. You can also insert up to three live video streams into the borders.
- The built-in DVE allows you to create key frame based DVE moves, flying graphics and animated stingers.
Keyers
- The switcher features four upstream keyers and a DVE, alowing you to layer live video, title, graphics and animation over live video. You can choose from chroma, luma, linear, and pattern keys at Ultra HD resolution with 10-bit processing.
- Two downstream keyers allow you to add graphics, lower thirds, titles and logos for a polished live production.
- The DVE allows for the creation of picture-in-picture effects.
Control Interface
- The ATEM 4K switcher uses an Ethernet connection to interface with control surfaces such as the optional ATEM 1 M/E and 2 M/E Broadcast Panels.
- You can also control the switcher by using the included ATEM Software Control software from a Mac or Windows computer over Ethernet. You can control all production settings of the switcher as well as directly import graphics from your computer into the switcher's media pool.
- You set the format for each project you are working on, from SD to HD to Ultra HD, selecting resolution and frame rate. This is accomplished by using either the included software for Mac/PC, or via the ATEM 1 M/E or ATEM 2 M/E Broadcast Panel.
- Using the Ethernet port on the switcher allows you to connect control surfaces directly to the switcher or you can control the switcher across a network.
- The Switcher features a mini USB port that is used for software updates and to set the switcher's Chassis IP address, which can only be done by using a computer running the ATEM Switcher Utility connected to the switcher's USB port.
Rack Mount
- The switcher is a single RU in height and has built-in rack mount ears, for mounting in a production road case or in a post production facility.
